Column Type Size Nulls Auto Default Children Parents Comments
image_experiment_id serial 10  √  nextval('image_experiment_image_experiment_id_seq'::regclass)
image_id int8 19  √  null
image.image_id image_experiment_image_id_fkey
experiment_id int8 19  √  null

Table contained 539 rows at Wed May 20 01:40 EDT 2009

Indexes:
Column(s) Type Sort Constraint Name
image_experiment_id Primary key Asc image_experiment_pkey

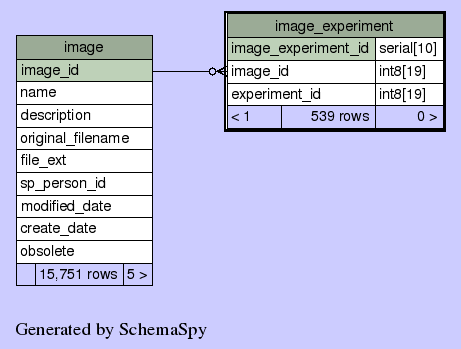

Close relationships  within one two degrees of separation :
